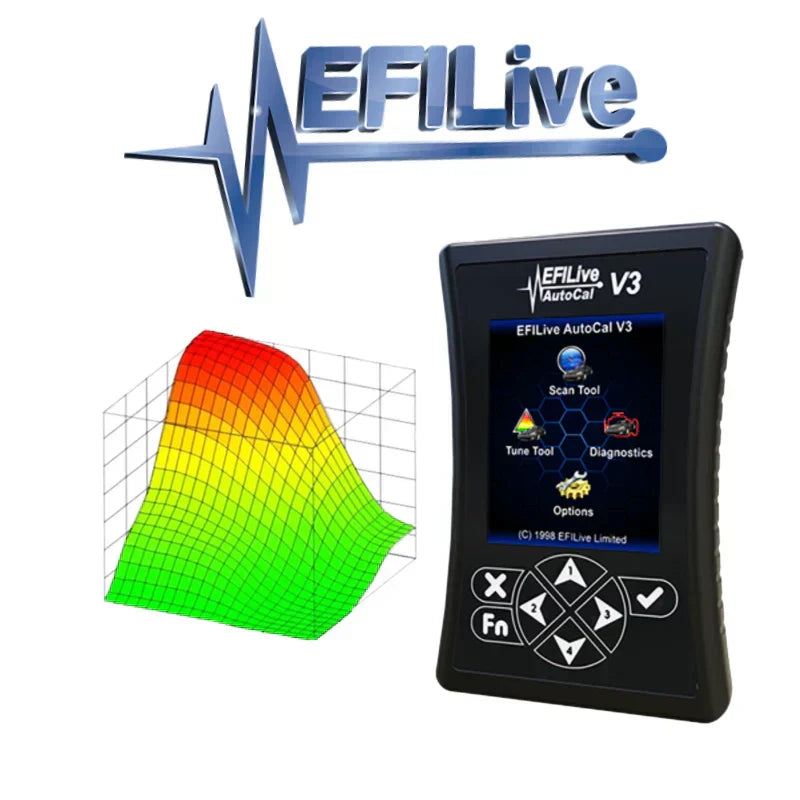

Efi Live Auto Cal
Share
The efi live is a very simple but reliable tuner we recommend reading through the below pdf instructions
Your programmer should be pre loaded ready load with your tune you select on the order form
FOR EFI LIVE AUTOCAL TUNING INSTRUCTIONS PDF CLICK HERE
*** NOTICE YOUR EFI TUNER IS PRELOADED WITH YOUR CUSTOM TUNE ALREADY ***
1. Always make sure you have newer batteries less then 12 months old so unfortunately, the battery industry has massively dropped in quality since 2020 the average lifespan for a battery since 2020 is around 12 months to be able to withstand and hold proper voltage.
2. Any aftermarket accessories need to be unplugged or their fuses need pulled.
3. ALWAYS be sure to Put a battery charger on the truck, set it at 12 volts and 15amps to keep the voltage above 12.5 volts when flashing the truck. Do not use a jump box, just a simple Real High quality battery charger. If volts drop below 12.5 volts ECM damage can occur. Do not flash ECM if volts are under 12.5.
4. Always tune the truck before removing parts, Do not remove parts until the tuning process has been complete Be very very carefully with all hardware connections be gentle with all cable plugs do not force anything and make sure they are securely fasten before programming your truck and double check everything
Step 1
Turn the key to the run position and plug the Autocal Device into the OBD-II port with the cable that came with the efi tuner.
Step 2
Navigate to TUNE TOOL > TUNING > PROGRAM FULL
Then highlight the file you wish to load and select the checkmark and follow any prompts on the screen. A green progress bar will come up across the bottom of the screen once it starts loading.
*NOTE IF YOU HAVE A 2007.5-2012 6.7L CUMMINS*
You will need to load the Preload file before loading the CSP5 tune file.
Step 3
Once the file has finished installing and you follow any additional prompts, you can unplug the device your EGR and Throttle Valve and then you can start the vehicle.
